Powder Coating for Electrical Enclosures & Cabinets

YD supplies durable powder coating for electrical enclosures, control cabinets, switchgear housings and industrial metal cabinets.

Designed for manufacturers with manual or automatic electrostatic spraying lines, our electrical enclosure powder coating provides good leveling, strong adhesion, impact resistance and reliable corrosion protection on properly pretreated metal surfaces.

Available in custom colors, gloss levels and surface textures, the coating can be matched to your cabinet design, operating environment and existing curing line.

Send us your substrate, RAL or Pantone color, surface finish, curing conditions and monthly powder consumption. We will recommend a suitable formulation and prepare a sample for testing.

Powder Coating Designed for Cabinet Production Lines

Electrical cabinet manufacturers require more than an attractive finish. The coating must spray consistently, cover fabricated sheet metal parts and maintain a stable appearance across repeated production batches.

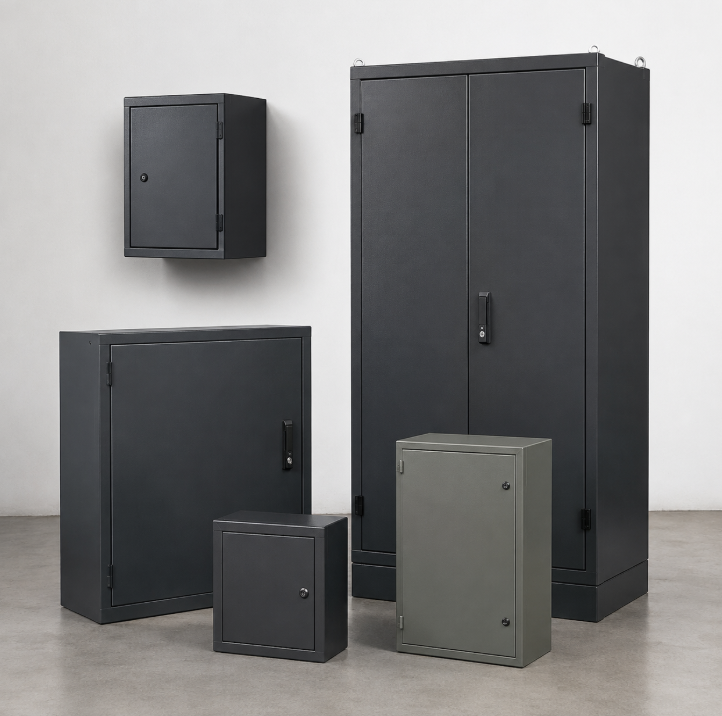

YD powder coating for metal cabinets is suitable for manufacturers producing:

• Electrical enclosures

• Control cabinets

• Switchgear cabinets

• Distribution board housings

• Industrial control panels

• Network and server cabinets

• Equipment enclosures

• Junction box housings

• Machine control cabinets

• Metal electrical boxes

The formulation can be adjusted according to the substrate, application environment, target film thickness, surface appearance and curing conditions of your production line.、

What Problems Does Our Electrical Enclosure Powder Coating Solve?

Smooth and Consistent Cabinet Surfaces

Good leveling helps produce a uniform coating on cabinet doors, side panels, frames and fabricated metal parts.

Smooth, matte, semi-gloss, high-gloss and textured finishes can be selected according to the enclosure design and end-user requirements.

Reliable Adhesion to Pretreated Metal

The coating achieved Grade 0 adhesion in laboratory testing on 0.8 mm cold-rolled steel panels after oil and rust removal.

Actual adhesion depends on the substrate condition, pretreatment process, film thickness and curing schedule. We recommend sample testing on your production line before bulk purchasing.

Resistance to Handling and Assembly Damage

Electrical enclosures may pass through punching, bending, assembly, wiring, packaging and transportation processes.

The coating provides:

• Impact resistance up to 50 kg·cm under the stated test conditions

• Pencil hardness of at least 1H

• Flexibility without cracking or peeling around a 2 mm axis

• Good resistance to routine wiping and handling

These properties help reduce visible scratches, coating damage and rework during cabinet assembly.

Protection Against Moisture and Corrosion

YD powder coating for electrical cabinets provides resistance to water, acid, alkali and neutral salt spray under the reported laboratory conditions.

The standard coating achieved at least 240 hours of neutral salt spray resistance, with rust blistering below 2 mm on the tested cold-rolled steel panels.

For outdoor cabinets, coastal environments, chemical plants or other highly corrosive applications, send us the installation environment and required test standard. The coating system and pretreatment must be evaluated together.

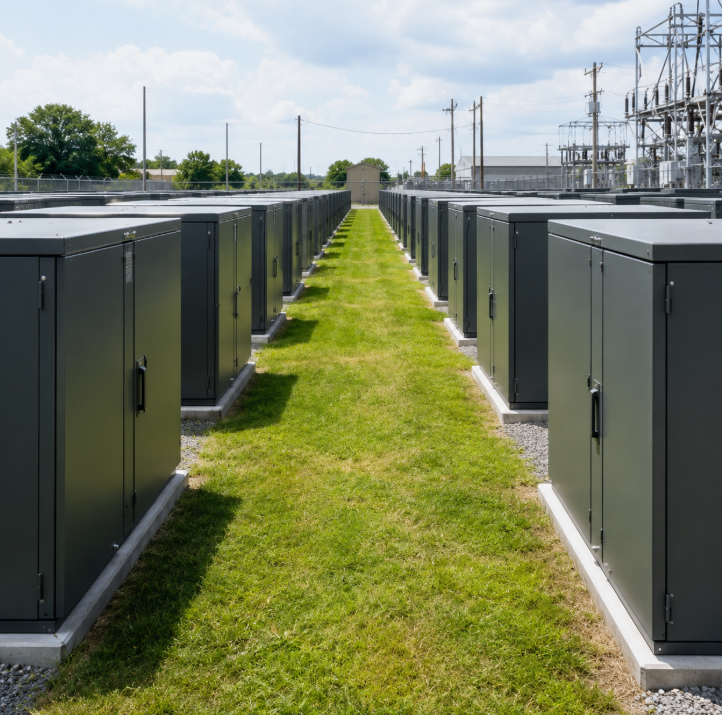

Indoor and Outdoor Electrical Enclosure Coating Options

Epoxy-polyester powder coating is commonly selected for indoor electrical cabinets and equipment housings.

Pure polyester powder coating is recommended when the enclosure will be installed outdoors or exposed to sunlight. Final selection should be based on the actual environment rather than cabinet appearance alone.

Custom Colors and Finishes for Electrical Cabinets

YD provides custom powder coating for electrical enclosures according to your color sample, RAL number, Pantone number or approved production panel.

Available options include:

• Standard and custom RAL colors

• Light gray and dark gray cabinet colors

• Black and white powder coating

• Matte, semi-gloss and high-gloss finishes

• Smooth surfaces

• Fine-textured surfaces

• Wrinkle and special decorative effects

• Epoxy-polyester formulations

• Pure polyester formulations

Common cabinet colors such as RAL 7035 can be matched according to the approved sample. For repeat bulk orders, we recommend retaining an approved master panel as the color and gloss reference.

Application Parameters

The final spray voltage, film thickness and curing schedule should be adjusted according to the cabinet structure, metal thickness, powder coating line, oven performance and required finish.

Deep corners, folded edges, ventilation openings and recessed areas may require production-line testing to optimize electrostatic settings and coverage.

Coating Performance

These figures are laboratory test results for reference. Actual coating performance can vary with the substrate, metal pretreatment, film thickness, curing conditions, color, gloss level and service environment.

RoHS-Compliant Powder Coating for Electrical Cabinets

The formulation does not contain intentionally added arsenic, selenium, lead, hexavalent chromium, mercury, antimony or cadmium as listed in the existing product specification.

This supports electrical cabinet manufacturers that require a RoHS-compliant powder coating for export products and regulated supply chains.

Contact us when specific reports, declarations or batch documents are required for your project.

Suitable for Manual and Automatic Spraying Lines

Our industrial powder coating powder can be used with high-voltage electrostatic spraying equipment.

Before recommending a formulation, we can review:

• Manual or automatic spray line

• Spray gun brand and operating voltage

• Number of recovery cycles

• Cabinet material and metal thickness

• Pretreatment method

• Conveyor speed

• Oven temperature

• Required curing time

• Target film thickness

• Desired appearance

• Monthly or annual powder consumption

This allows the powder coating to be evaluated against your actual production conditions instead of selecting a product based only on color.

Reduce Risk Before a Bulk Order

Changing powder coating suppliers can affect color, gloss, application settings, curing and finished-product inspection.

YD supports a sample-first approval process:

1. Send your required color, gloss and texture.

2. Provide the substrate and pretreatment information.

3. Confirm whether the enclosure is used indoors or outdoors.

4. Share your spraying voltage and curing schedule.

5. Test the sample on your own production line.

6. Approve the coated panel before bulk manufacturing.

7. Use the approved panel as the reference for repeat orders.

This process helps electrical enclosure manufacturers verify application compatibility before moving to regular monthly or quarterly purchasing.

Why Source Electrical Enclosure Powder Coating from YD?

Stable Supply for Repeat Production

YD operates more than 28 production lines with a stated monthly powder coating capacity of approximately 1,200 tons.

This capacity supports recurring orders from cabinet manufacturers, sheet metal factories and industrial equipment producers.

Batch Consistency Control

Color, gloss and application stability are important when the same cabinet series is manufactured over a long period.

Production and inspection are controlled against approved requirements to support repeat purchasing and reduce unexpected differences between batches.

Custom Formulation Support

The coating can be selected or adjusted according to:

• Indoor or outdoor use

• Required color and gloss

• Smooth or textured finish

• Substrate type

• Existing curing oven

• Required mechanical performance

• Corrosion-resistance target

• Production volume

Learn more about our custom powder coating service.

Bulk Manufacturing and Export Experience

YD supplies powder coatings for international industrial customers and supports container shipments for regular bulk orders.

View our powder coating factory and production capacity.

Information Required for an Accurate Quotation

For a faster recommendation and quotation, please provide:

• Enclosure application

• Indoor or outdoor installation

• Metal substrate

• Pretreatment method

• RAL, Pantone or physical color sample

• Required gloss level

• Smooth or textured finish

• Target film thickness

• Current curing temperature and time

• Required salt spray hours

• Powder packaging requirement

• Estimated order quantity

• Monthly or annual consumption

• Destination country or port

Providing this information helps us calculate a more accurate formulation, sample plan, price and production schedule.

Frequently Asked Questions

What powder coating is recommended for indoor electrical enclosures?

Epoxy-polyester powder coating is generally suitable for indoor control cabinets, distribution cabinets, switchgear housings and network cabinets where adhesion, leveling and mechanical performance are important.

What powder coating should be used for outdoor electrical cabinets?

Pure polyester powder coating is normally recommended for outdoor electrical enclosures because it provides better weather and color retention than standard indoor epoxy-polyester systems.

The final coating must still be selected according to UV exposure, humidity, corrosion level and required service life.

Can you match our existing electrical cabinet color?

Yes. Provide a RAL number, Pantone number, coated panel or physical color sample. Color and gloss should be approved on a sample panel before bulk production.

Is the coating suitable for automatic spray lines?

It is designed for high-voltage electrostatic spraying, with a recommended voltage of 60–80 kV. Final settings should be tested and adjusted according to the equipment, cabinet geometry and recovery system.

Can the powder be applied to galvanized steel or aluminum?

Application feasibility depends on the substrate alloy, surface condition and pretreatment. Send us the material information so that a suitable system can be recommended and tested.

What is the recommended coating thickness?

The general recommended film thickness is 60–150 μm. The optimum thickness depends on the finish, cabinet structure and required performance.

Is this an electrical insulation powder coating?

This product is intended for the protective and decorative coating of electrical enclosure housings and metal cabinets.

It should not be treated as a dielectric insulation coating for live conductors, busbars or electrical components unless a separate insulation formulation has been specified and tested.

Can we test a sample before placing a bulk order?

Yes. Samples can be prepared for color, finish and production-line testing before an official bulk order.

What is the standard minimum order quantity?

The standard minimum order quantity is generally one ton. Smaller quantities may be considered for specific projects or initial cooperation.

Request a Powder Coating Sample for Your Electrical Enclosures

Looking for a stable powder coating for electrical enclosures, control cabinets or switchgear production?

Send YD the following information:

• Cabinet material

• Indoor or outdoor use

• RAL or Pantone color

• Gloss and texture

• Curing schedule

• Required test performance

• Estimated order quantity

We will recommend a suitable electrical enclosure powder coating, prepare a sample for testing and provide a bulk quotation based on your production requirements.

Contact YD Powder Coating to start your sample evaluation.
