Powder Coating for Home Appliances

YD supplies durable powder coating for home appliances, including refrigerator panels, washing machine cabinets, dryer housings, microwave outer shells, air-conditioner housings and other appliance metal parts.

Developed for appliance manufacturers with manual or automatic electrostatic spraying lines, our home appliance powder coating provides good leveling, reliable adhesion, impact resistance and protection against moisture, cleaning chemicals and normal handling.

Colors, gloss levels, textures and powder formulations can be customized according to your appliance design, metal substrate, operating environment and existing curing line.

Send us your appliance component, substrate, RAL or Pantone color, required finish, curing conditions and monthly powder consumption. YD will recommend a suitable appliance powder coating and prepare a sample for production-line testing.

Powder Coating Powder for Appliance Manufacturers

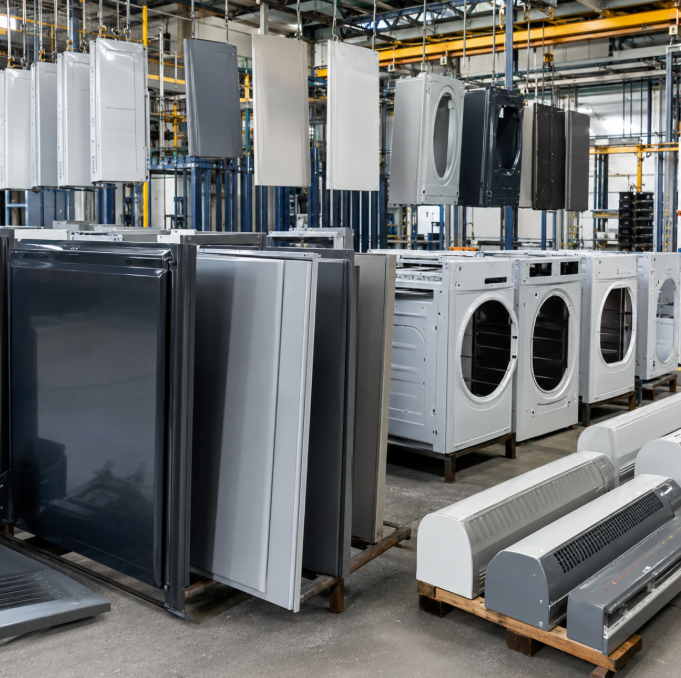

Home appliances contain many fabricated metal panels, frames, covers and brackets that require a consistent protective and decorative finish.

YD powder coating for home appliances can be evaluated for:

• Refrigerator side panels

• Refrigerator rear panels

• Refrigerator compressor compartment covers

• Freezer outer cabinets

• Washing machine cabinets

• Washing machine top panels

• Dryer cabinets and metal panels

• Microwave outer housings

• Range hood housings

• Water heater outer shells

• Air-conditioner indoor unit metal parts

• Air-conditioner outdoor unit housings

• HVAC equipment housings

• Dehumidifier metal cabinets

• Appliance mounting brackets

• Internal metal frames

• Appliance base plates

• General household appliance metal parts

YD supplies the powder coating powder used on appliance production lines. We do not manufacture home appliances or provide local powder coating services.

Coating Performance That Supports Appliance Production

Appliance manufacturers need more than an attractive color. The coating must remain stable during continuous production and maintain a consistent appearance across panels manufactured in different batches.

A suitable home appliance powder coating should help manufacturers achieve:

• Consistent color and gloss

• Smooth coverage on large visible panels

• Good edge and corner coverage

• Reliable adhesion after pretreatment

• Resistance to handling and assembly

• Protection against moisture and corrosion

• Resistance to routine household cleaning

• Compatibility with automated spraying equipment

• Repeatable performance across bulk orders

The coating formulation should be selected according to the appliance component and service environment rather than color alone.

Consistent Color for High-Volume Appliance Production

Color consistency directly affects the finished appearance of refrigerators, washing machines, dryers and other white goods.

A single appliance may contain panels manufactured on different production dates. Visible color or gloss differences between the door, side panel, top cover and base can result in rejected products or additional rework.

YD can match appliance powder coating according to:

• RAL color number

• Pantone color number

• Existing coated appliance panel

• Physical color sample

• Customer-approved master panel

• Current powder coating sample

For repeat production, we recommend approving and retaining a physical coated panel that defines the required color, gloss and surface texture.

Future batches can then be compared against the same approved reference.

Smooth Finishes for Visible Appliance Panels

Refrigerator panels, washing machine cabinets and dryer housings contain large visible surfaces where coating defects can be easily noticed.

Good leveling helps produce a uniform finish without excessive orange peel under suitable application and curing conditions.

Available surface directions include:

• Smooth matte

• Smooth semi-gloss

• Smooth high gloss

• Fine texture

• Sand texture

• Wrinkle effect

• Metallic effect

• Custom decorative finish

A smooth coating cannot conceal dents, deep scratches, uneven welding or poor substrate preparation. Visible appliance panels should be properly cleaned and finished before powder application.

Mechanical Resistance During Assembly and Transport

Appliance panels pass through multiple production stages after coating, including assembly, wiring, inspection, packaging, warehousing and transportation.

Under the stated laboratory conditions, YD general industrial powder coating provides:

• Grade 0 adhesion

• Impact resistance of 50 kg·cm

• Pencil hardness of at least 1H

• Flexibility without cracking or peeling around a 2 mm axis

• No visible damage or discoloration after 20 ethanol wipes

These properties help reduce coating damage during normal appliance assembly and handling.

Actual performance depends on the substrate, pretreatment, film thickness, curing condition and type of mechanical contact.

Resistance to Moisture and Household Cleaning

Refrigerators, washing machines, dryers, air conditioners and water heaters may be exposed to humidity, condensation, detergents and routine cleaning.

Under the reported laboratory conditions, the coating achieved:

• At least 240 hours of water resistance

• At least 48 hours of alkali resistance

• At least 48 hours of acid resistance

• At least 240 hours of neutral salt spray resistance

Actual corrosion and chemical resistance depend on the complete coating system, including:

• Metal substrate

• Surface cleanliness

• Pretreatment

• Powder formulation

• Film thickness

• Curing conditions

• Panel edges and joints

• Installation environment

• Cleaning chemical and concentration

Provide your required test method when an appliance component must withstand a particular detergent, cleaning agent or corrosion standard.

Select the Coating According to the Appliance Component

Not every appliance part should use the same powder coating formulation.

Epoxy-polyester powder coating is generally suitable for indoor appliance housings and metal panels.

Pure polyester powder coating should be considered for outdoor air-conditioner and HVAC housings exposed to sunlight, rain and temperature changes.

Indoor Appliance Powder Coating

Indoor household appliances usually require a balance of appearance, adhesion, mechanical properties and resistance to routine household chemicals.

Epoxy-polyester powder coating can be evaluated for:

• Refrigerator cabinets

• Washing machine housings

• Dryer cabinets

• Microwave outer shells

• Water heater housings

• Range hood covers

• Internal appliance frames and brackets

The final formulation should be selected according to the required color, gloss, texture, substrate and curing line.

Outdoor HVAC and Air-Conditioner Housings

Outdoor air-conditioner units and HVAC housings are exposed to UV radiation, rain, humidity and changing temperatures.

For these components, pure polyester powder coating is generally more appropriate than a standard indoor hybrid system because outdoor color and gloss retention become more important.

Before recommending a formulation, please provide:

• Installation region

• UV exposure

• Humidity level

• Coastal or inland environment

• Required salt spray hours

• Required weathering standard

• Expected service life

• Metal substrate and pretreatment

For coastal, tropical or industrial environments, the pretreatment and coating formulation should be evaluated as a complete corrosion-protection system.

Important Application Limitations

This general home appliance powder coating is mainly intended for protective and decorative metal housings, panels, covers, frames and brackets.

Separate evaluation is required for the following applications:

High-Temperature Parts

Metal parts located near heating elements, burners or high-temperature chambers may require a special heat-resistant powder coating.

Do not select a standard appliance powder based only on the external oven temperature. Provide the actual continuous and peak operating temperatures.

Food-Contact Surfaces

A standard industrial powder coating should not be described as suitable for direct food contact unless the specific formulation has been tested and documented for that use.

Dishwasher Baskets and Wire Racks

Dishwasher baskets and refrigerator wire shelves may require specialized nylon, thermoplastic or other coating systems with different flexibility and moisture-resistance properties.

These applications should not automatically use the standard general industrial formulation.

Electrical Insulation Components

This product is intended for protective and decorative coating of metal appliance parts.

It should not be used as a dielectric insulation coating for live electrical components unless a separate electrical-insulation formulation has been specified and tested.

Suitable Metal Substrates

YD appliance powder coating can be evaluated for different conductive metal substrates.

Cold-Rolled Steel

Cold-rolled steel is commonly used for refrigerator panels, washing machine cabinets, dryer housings and other visible appliance components.

The reported laboratory performance was tested on 0.8 mm cold-rolled steel plates after oil and rust removal.

Galvanized Steel

Galvanized steel may be used for moisture-exposed appliance panels and HVAC housings.

The galvanized surface, pretreatment and possible outgassing should be evaluated through sample spraying before bulk production.

Aluminum Sheet

Powder coating can be evaluated for properly pretreated aluminum appliance panels, frames and lightweight housings.

Please provide the aluminum alloy and pretreatment method before sample preparation.

Mild Steel

Mild steel is commonly used for appliance frames, base plates, mounting brackets and internal structural parts.

Oil, scale, rust and welding residue must be removed before pretreatment and spraying.

Custom Appliance Colors and Finishes

YD provides custom powder coating for appliance housings according to product design and brand requirements.

Color matching can be based on:

• RAL colors

• Pantone colors

• Physical appliance panels

• Painted metal samples

• Existing powder samples

• Customer-specific brand colors

Common appliance color directions include:

• Appliance white

• Bright white

• Warm white

• Black

• Silver gray

• Dark gray

• Beige

• Cream

• Custom brand colors

• Metallic effects

The words “white,” “black” or “silver” are not sufficient for accurate production matching. A physical panel or recognized color reference should be provided.

Gloss and Texture Options

Color, gloss and texture should be approved together because changing the gloss level can alter how the finished color is perceived.

Recommended Application Parameters

These values provide an initial application reference.

Final settings should be adjusted according to:

• Appliance panel thickness

• Part dimensions

• Hanging density

• Conveyor speed

• Spray gun type

• Automatic gun arrangement

• Powder feed rate

• Recovery system

• Oven temperature distribution

• Required film thickness

• Color and finish

Curing should be confirmed according to the actual metal temperature and effective curing time, not only the oven air-temperature setting.

Coating Properties

The reported values were obtained under laboratory conditions and are supplied for reference.

Actual coating performance may vary with color, gloss, substrate, pretreatment, coating thickness, curing conditions and service environment.

RoHS-Compliant Powder Coating for Appliances

According to the current product specification, the powder coating does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony or cadmium and meets RoHS requirements.

This supports appliance manufacturers that need a RoHS-compliant powder coating for exported products and regulated supply chains.

Contact YD when your project requires specific declarations, test reports or batch documentation.

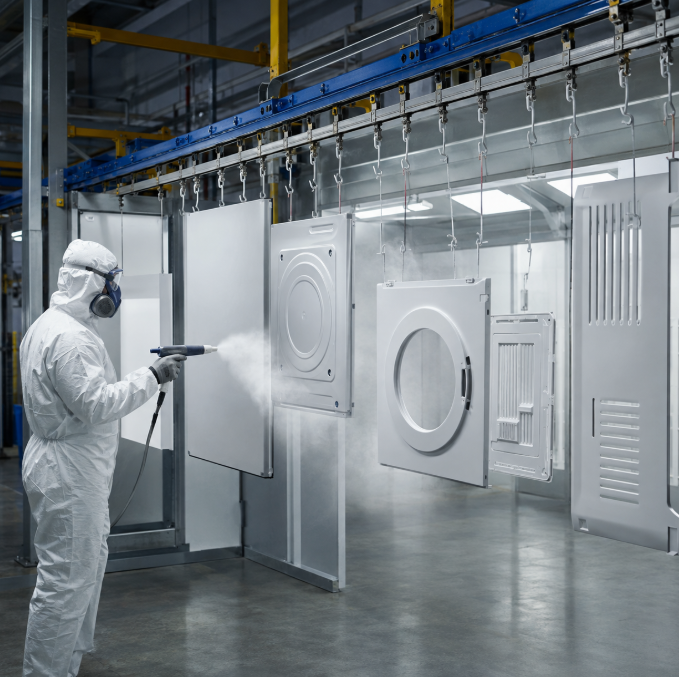

Designed for Manual and Automatic Appliance Coating Lines

Home appliance manufacturers often use automated reciprocators, conveyor systems, powder recovery equipment and continuous curing ovens.

Before recommending an appliance powder coating, YD can review:

• Manual or automatic spraying

• Spray gun brand and model

• Normal spraying voltage

• Line speed

• Panel hanging density

• Gun-to-workpiece distance

• Number of powder recovery cycles

• Target film thickness

• Oven temperature

• Effective curing time

• Color-change frequency

• Current coating defects

• Monthly powder consumption

This allows the powder to be tested against the actual appliance production line rather than selected only from a color card.

Powder Recovery and Reuse

Powder recovery can improve material utilization in high-volume appliance production, but recovered powder must be managed carefully.

The ratio of recovered powder to virgin powder can affect:

• Particle-size distribution

• Powder flow

• Electrostatic application

• Surface appearance

• Color consistency

• Gloss

• Film thickness

Provide your recovery method and normal recycling ratio during sample evaluation.

For demanding visible appliance panels, the proportion and condition of recovered powder should be controlled to reduce appearance variation.

Common Appliance Powder Coating Problems

Color Differences Between Matching Panels

Color differences may be caused by different powder batches, substrates, film thicknesses, curing temperatures or gloss levels.

Use the same approved physical panel to inspect refrigerator doors, side panels and other adjacent components.

Excessive Orange Peel on Large Panels

Large flat panels make flow and leveling problems more visible.

Review the formulation, film thickness, powder flow, gun settings, grounding and curing conditions together.

Thin Coating on Edges and Corners

Panel edges, recessed areas and folded structures may receive less powder because of electrostatic effects.

Spray voltage, gun angle, distance and part orientation may need adjustment during line testing.

Pinholes or Bubbles

Pinholes can result from surface contamination, trapped gas, galvanized substrates, porous welds or unsuitable pretreatment.

The substrate should be inspected before assuming the powder formulation is the only cause.

Poor Adhesion

Oil, rust, stamping lubricant, cleaning residue, unsuitable pretreatment or incomplete curing can reduce adhesion.

Appliance panels should be thoroughly cleaned and pretreated before spraying.

Yellowing or Color Change During Curing

Light colors, especially appliance white, can show visible changes when the curing temperature or residence time is excessive.

Oven temperature distribution and actual metal temperature should be checked during sample approval.

Scratches During Assembly

Scratches may be related to incomplete curing, insufficient hardness, rough fixtures, sharp contact or unsuitable handling.

The coating process and assembly method should be evaluated together.

Sample Approval Before Bulk Production

Production-line testing helps reduce the risk of color, gloss and application problems before regular purchasing begins.

The recommended process is:

1. Confirm the appliance component.

2. Provide the metal substrate.

3. Describe the indoor or outdoor environment.

4. Send the required RAL, Pantone or physical color sample.

5. Confirm the gloss and texture.

6. Provide the pretreatment process.

7. Share the spraying and curing conditions.

8. Test the powder on an actual appliance panel.

9. Inspect color, appearance, adhesion and assembly resistance.

10. Approve and retain a physical master panel.

11. Use the approved panel for future batch comparison.

When several factories or coating lines manufacture the same appliance model, each line should be evaluated to confirm consistent results.

Why Appliance Manufacturers Choose YD

More Than 20 Years of Production Experience

YD has more than 20 years of experience producing industrial powder coatings for different metal applications.

Custom Color and Formulation Support

The formulation can be selected or adjusted according to:

• Appliance component

• Indoor or outdoor use

• Metal substrate

• Color and gloss

• Smooth or textured finish

• Existing curing line

• Corrosion target

• Required mechanical properties

Learn more about our custom powder coating service.

Sample Testing Before Bulk Orders

Samples can be prepared for color matching and production-line evaluation before an official order.

Capacity for Recurring Bulk Supply

YD operates more than 28 powder coating production lines with a stated monthly capacity of approximately 1,200 tons, supporting recurring orders from high-volume manufacturers.

View our powder coating factory and production capabilities.

Quality Control for Repeat Orders

Color, gloss and application performance can be checked against approved requirements to support stable monthly or quarterly supply.

Export and Container Shipment Experience

YD supplies powder coating to customers in multiple international markets and supports container shipments for regular bulk orders.

For other metal applications, view our general industrial powder coating.

Information Required for an Accurate Quotation

For a faster recommendation and quotation, please provide:

• Appliance type

• Component name

• Indoor or outdoor application

• Metal substrate

• Pretreatment process

• RAL, Pantone or physical color sample

• Required gloss level

• Smooth or textured finish

• Target film thickness

• Manual or automatic spraying line

• Curing temperature and time

• Required salt spray performance

• Required chemical-resistance test

• Estimated order quantity

• Monthly or annual consumption

• Packaging requirement

• Destination country or port

Providing complete application information helps YD recommend a more suitable home appliance powder coating and reduce repeated sample adjustments.

Frequently Asked Questions

Does YD manufacture home appliances?

No. YD manufactures and supplies powder coating powder for appliance factories and component manufacturers with their own spraying lines or coating partners.

What home appliance parts can be powder coated?

Powder coating can be evaluated for refrigerator panels, washing machine cabinets, dryer housings, microwave outer shells, water heater covers, HVAC housings, frames, brackets and other conductive metal parts.

What powder coating is suitable for indoor appliances?

Epoxy-polyester powder coating can generally be evaluated for indoor appliance cabinets and metal panels that require good appearance, adhesion and mechanical resistance.

What coating is suitable for outdoor air-conditioner units?

Pure polyester powder coating should be considered for outdoor AC and HVAC housings because of their exposure to sunlight and weather.

The final formulation should reflect the required UV, humidity and corrosion performance.

Can YD match appliance white?

Yes. Send the RAL or Pantone color, existing coated panel or physical appliance sample.

Because different white shades can appear similar in photographs but different in production, a physical approved panel is recommended.

Can you produce high-gloss and matte appliance powder coating?

Yes. Smooth high-gloss, semi-gloss, matte, textured and other finish directions can be evaluated according to the appliance design.

Can it be used on galvanized appliance panels?

It may be used after evaluating the galvanized surface, pretreatment and possible outgassing.

Sample spraying on the actual substrate is recommended.

Can the powder be used on aluminum appliance parts?

Powder coating can be evaluated for properly pretreated conductive aluminum. Provide the alloy and pretreatment method before sample production.

Is this powder suitable for ovens and other high-temperature parts?

The standard formulation should not automatically be used on components exposed to high continuous temperatures.

Provide the actual operating temperature so that a special heat-resistant formulation can be evaluated.

Is it suitable for dishwasher baskets?

Dishwasher baskets and wire racks may require specialized nylon or thermoplastic coatings. They should be evaluated separately from standard appliance housing powder.

What film thickness is recommended?

The general recommended film thickness is 60–150 μm.

The final target should be determined according to the appliance part, surface finish and required performance.

Is the powder suitable for automatic production lines?

It is designed for high-voltage electrostatic spraying. Final compatibility should be verified using the customer’s guns, recovery system, conveyor speed and curing oven.

Can we receive a sample before purchasing?

Yes. YD can prepare samples for color, finish and production-line testing before an official bulk order.

What is the normal minimum order quantity?

The standard minimum order quantity is generally one ton. A lower quantity may be considered for specific projects or initial cooperation.

What is the normal production lead time?

The stated standard lead time is generally around seven days after the deposit is received. The actual schedule should be confirmed according to the formulation, color, quantity and current production plan.

Request a Home Appliance Powder Coating Sample

Looking for stable powder coating for home appliances, refrigerator panels, washing machine cabinets or HVAC housings?

Send YD your:

• Appliance component

• Metal substrate

• Indoor or outdoor environment

• Color and finish

• Pretreatment process

• Spraying equipment

• Curing schedule

• Required performance

• Estimated powder consumption

YD will recommend a suitable appliance powder coating, prepare a sample for production-line evaluation and provide a quotation for repeat bulk supply.

Contact YD Powder Coating to discuss your home appliance coating requirements.
