Application
Jul. 16, 2026
YD supplies durable powder coating for sheet metal parts, fabricated metal components, machinery housings, steel panels, brackets, frames and welded assemblies.
Our industrial powder coating powder is developed for metal fabrication companies and equipment manufacturers operating manual or automatic electrostatic spraying lines. It provides good leveling, strong adhesion, impact resistance and corrosion protection on properly pretreated metal surfaces.
Colors, gloss levels, textures and coating formulations can be customized to match your sheet metal products, production line and end-use environment.
Send us your metal substrate, required color, surface finish, curing conditions and monthly powder consumption. YD will recommend a suitable sheet metal powder coating and prepare a sample for production-line testing.
Sheet metal parts usually pass through laser cutting, punching, bending, welding, grinding and assembly before surface finishing.
The general industrial powder coating must therefore provide more than an attractive color. It must produce a consistent finish across flat panels, folded edges, welded areas, corners and complex fabricated structures.

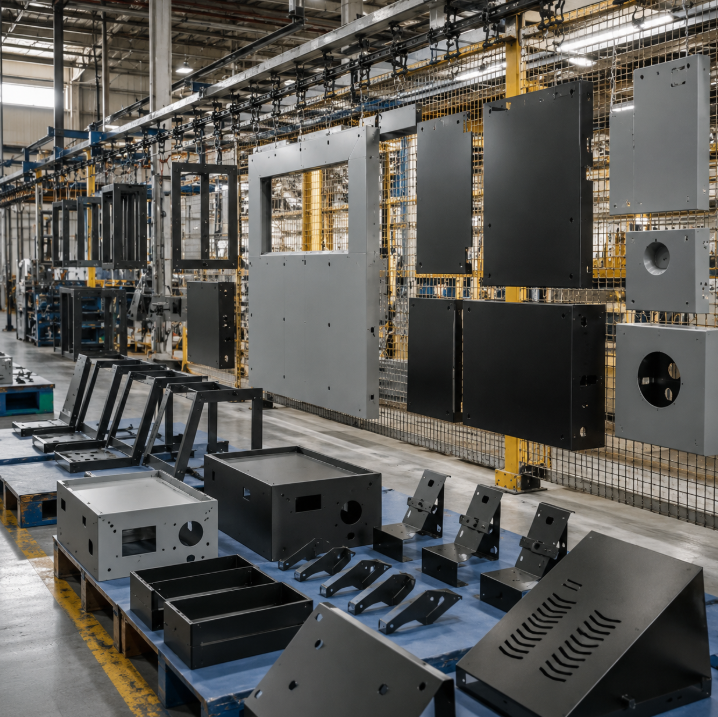

YD powder coating for fabricated metal parts is suitable for:
Machinery housings
Equipment covers
Machine guards
Steel side panels
Metal access panels
Fabricated brackets
Welded frames
Stamped metal parts
Mounting plates
Base plates
Metal supports
Industrial panels
Steel covers
Fabricated assemblies
General machinery components
Our sheet metal powder coating can be selected according to the substrate, part geometry, installation environment, target film thickness and existing curing oven.
A powder coating may perform well on one test panel but still create problems during continuous production.
Sheet metal manufacturers need stable performance across multiple shifts, repeat orders and different fabricated parts. Variations in color, gloss, flow or curing can increase inspection failures and rework.
YD focuses on the factors that matter in repeat production:
Repeat machinery and equipment orders often use the same approved color for several years.
Powder coating color and gloss can be produced according to an approved color panel, RAL number, Pantone number or physical sample. Retaining an approved master panel helps establish a clear standard for future production batches.
Good leveling helps create a uniform surface on machinery covers, side panels and visible fabricated components.
Smooth finishes are suitable for products that require a clean appearance, while fine textures can help reduce the visibility of minor substrate marks and fabrication irregularities.
Fabricated sheet metal parts may be handled repeatedly during assembly, installation, packaging and transportation.
Under the stated laboratory conditions, the coating provides:
Grade 0 adhesion
Impact resistance of 50 kg·cm
Pencil hardness of at least 1H
Flexibility without cracking or peeling around a 2 mm axis
Resistance to routine ethanol wiping
These properties help reduce coating damage during normal manufacturing and product handling.
Properly selected powder coating forms a protective layer between the sheet metal substrate and the surrounding environment.
The standard formulation achieved at least 240 hours of neutral salt spray resistance under the reported laboratory test conditions.
Actual corrosion resistance depends on:
Metal substrate
Surface cleanliness
Pretreatment process
Coating formulation
Film thickness
Curing condition
Part edges and welds
Installation environment
For outdoor machinery, coastal installations or chemically exposed components, the complete coating system should be evaluated before bulk purchasing.
YD powder coating for sheet metal parts can be evaluated for different conductive metal substrates.
| Sheet Metal Substrate | Typical Applications | Selection Considerations |
|---|---|---|
| Cold-rolled steel | Machinery panels, guards, brackets and covers | Degreasing, rust removal and pretreatment quality |
| Mild steel | Frames, supports and welded assemblies | Weld cleaning, scale removal and corrosion protection |
| Galvanized steel | Outdoor panels and fabricated components | Zinc surface condition, outgassing and pretreatment |
| Aluminum sheet | Lightweight panels, covers and equipment parts | Alloy type, surface preparation and curing conditions |
| Stainless steel | Special machinery parts and fabricated panels | Surface cleanliness and adhesion requirements |
Substrate compatibility should be confirmed through sample spraying because different alloys and pretreatment processes can affect adhesion and finished appearance.
The coating formulation should be selected according to where the finished sheet metal part will be used.
Epoxy-polyester powder coating is generally suitable for indoor machinery housings, equipment covers, metal brackets, frames and fabricated assemblies.
It provides a balanced combination of:
Surface appearance
Adhesion
Mechanical properties
Chemical resistance
Production efficiency
Pure polyester powder coating should be considered for sheet metal parts exposed to sunlight, rain and changing outdoor temperatures.
Typical applications include:
Outdoor machinery panels
Equipment covers
External metal guards
Fabricated support structures
Outdoor steel components
The required weather resistance, gloss retention and salt spray performance should be specified before formulation selection.
Industrial environments may expose sheet metal parts to cleaning agents, oils, diluted chemicals or alkaline substances.
Provide the actual chemical, concentration, contact time and operating temperature so that the powder coating system can be evaluated more accurately.
YD provides custom powder coating for sheet metal parts according to your product appearance and production requirements.
Available finish directions include:
Smooth finish
Fine texture
Sand texture
Matte finish
Semi-gloss finish
High-gloss finish
Wrinkle effect
Hammer-tone effect
Metallic effect
Custom decorative finish
Color matching can be based on:
RAL color number
Pantone color number
Physical metal panel
Painted product sample
Customer-approved reference panel
For repeat bulk orders, the approved sample should define the acceptable color, gloss and texture range.
The correct finish depends on the fabrication quality and final appearance requirements.
| Finish | Suitable Sheet Metal Parts | Main Benefit |
|---|---|---|
| Smooth | Visible machine panels and covers | Clean and uniform appearance |
| Fine texture | Machinery housings and fabricated panels | Helps reduce the visibility of minor surface marks |
| Matte | Industrial machinery and equipment parts | Low-reflection appearance |
| Semi-gloss | General fabricated components | Balanced appearance and cleaning convenience |
| High gloss | Decorative metal panels | Brighter and more reflective finish |
| Wrinkle or coarse texture | Industrial covers and equipment housings | Strong visual texture and surface concealment |
A textured powder coating should not be used to replace proper grinding, weld treatment or surface preparation. Major fabrication defects may remain visible after coating.
| Item | Recommended Parameter |
|---|---|
| Application method | High-voltage electrostatic spraying |
| Recommended spraying voltage | 60–80 kV |
| Recommended film thickness | 60–150 μm |
| Recommended curing temperature | 180–200°C |
| Recommended curing time | 10–15 minutes |
| Laboratory test substrate | 0.8 mm cold-rolled steel plate |
| Laboratory test film thickness | 40–80 μm |
| Test panel preparation | Oil and rust removal |
Application parameters may need to be adjusted according to:
Metal thickness
Part size
Part geometry
Conveyor speed
Spray gun settings
Hanging density
Powder recovery system
Oven temperature uniformity
Required surface finish
The metal temperature and effective curing time should be considered when testing thick frames, welded assemblies or parts with different material thicknesses.
| Test Item | Reported Result | Testing Standard |
|---|---|---|
| Adhesion | Grade 0 | GB/T 9286 |
| Impact resistance | 50 kg·cm passed | GB/T 1732 |
| Pencil hardness | ≥1H | GB/T 6739 |
| Solvent resistance | No visible damage or discoloration after 20 ethanol wipes | — |
| Alkali resistance | ≥48 hours without blistering, peeling, rust or spots | GB/T 9274 |
| Water resistance | ≥240 hours without blistering, peeling, rust or spots | GB/T 1733 |
| Acid resistance | ≥48 hours without blistering, peeling, rust or spots | GB/T 9274 |
| Neutral salt spray resistance | ≥240 hours; rust blistering below 2 mm | GB/T 1771 |
| Flexibility | No cracking or peeling around a 2 mm axis | GB/T 173 |
| Artificial aging resistance | ≥480 hours under the reported test criteria | GB/T 1865 Method 1 |
The results above were obtained from laboratory testing and are provided as reference data.
Actual performance may vary according to the color, gloss, substrate, pretreatment, coating thickness, curing condition and service environment.
The powder coating does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium or other listed heavy metals according to the existing product specification.
This makes it suitable for manufacturers that require a RoHS-compliant powder coating for fabricated metal parts and exported industrial products.
Contact YD when specific compliance documents, declarations or batch inspection records are required.

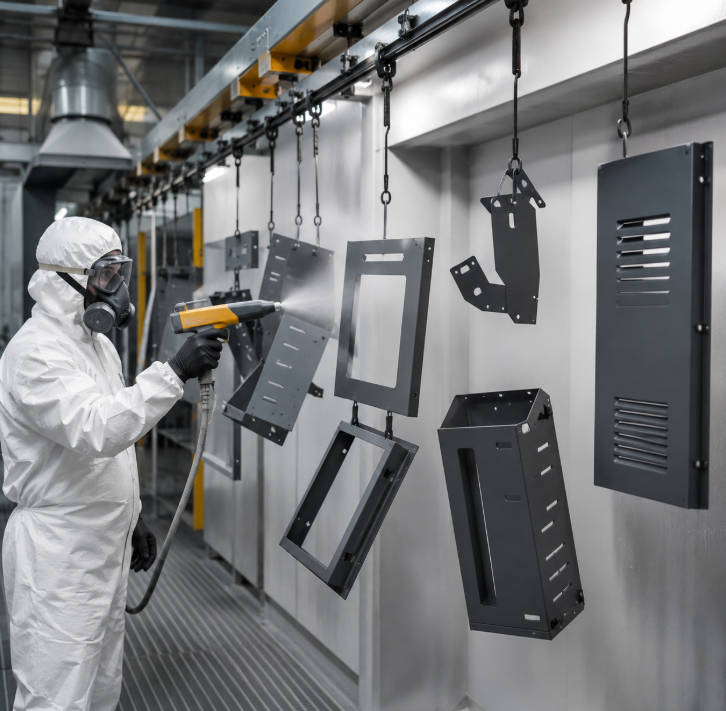

Different sheet metal factories use different spray booths, guns, conveyor speeds, recovery systems and curing ovens.
Instead of selecting powder coating only by color, YD can review your actual production conditions.
Please provide:
Manual or automatic spraying
Electrostatic spray gun type
Normal operating voltage
Powder recovery method
Number of powder recovery cycles
Part size and geometry
Hanging density
Target film thickness
Conveyor speed
Oven temperature
Effective curing time
Current coating problems
This information helps us recommend a powder coating for sheet metal parts that is more suitable for your production line.
Large flat panels can make differences in leveling, film thickness and spraying technique more visible.
The powder formulation, gun movement, part grounding and curing conditions should be checked together.
Folded edges, deep corners, ventilation openings and overlapping structures may be more difficult to coat evenly.
Spraying voltage, gun distance, part orientation and powder flow may need adjustment during production testing.
Contamination, trapped gas, porous welds, galvanized substrates and insufficient cleaning may cause surface defects during curing.
The substrate and pretreatment process should be reviewed before changing the powder coating formulation.
Color differences may result from raw material variation, gloss variation, film thickness, curing temperature or different reference standards.
Using an approved physical panel is more reliable than approving a color based only on a digital image.
Poor adhesion is often connected to oil, rust, scale, unsuitable pretreatment or incomplete curing.
Powder coating performance should always be evaluated as part of the complete surface preparation and curing process.
Testing the powder on your own production line helps reduce purchasing risk.
The recommended approval process is:
Provide the metal substrate and product application.
Confirm indoor or outdoor use.
Send the required color and finish.
Provide the pretreatment method.
Share the spraying and curing conditions.
Test the sample on actual sheet metal parts.
Check color, gloss, adhesion and appearance.
Approve a physical panel before bulk production.
Retain the panel for future batch comparison.
This process helps confirm that the selected sheet metal powder coating is compatible with the actual substrate, equipment and production conditions.
YD can recommend epoxy-polyester, pure polyester or other suitable powder coating systems according to the environment and performance requirements.
Colors, gloss levels and textures can be matched to the visual requirements of machinery, equipment and fabricated metal products.
YD supports recurring powder coating requirements from manufacturers that purchase standard colors or customized formulations on a monthly or quarterly basis.
Application recommendations can be adjusted based on the spray equipment, curing oven and actual coating results.
Learn more about our custom powder coating solutions.
For other industrial metal applications, view our general industrial powder coating.
Explore YD’s powder coating manufacturing capabilities.
To receive a more accurate recommendation and quotation, send us:
Type of sheet metal part
End-use application
Indoor or outdoor environment
Metal substrate
Pretreatment process
RAL, Pantone or physical color sample
Required gloss level
Smooth or textured finish
Target coating thickness
Spraying equipment
Curing temperature and time
Required corrosion performance
Estimated order quantity
Monthly or annual powder consumption
Packaging requirement
Destination country or port
Providing complete production information helps reduce repeated communication and allows us to recommend a more suitable powder coating powder.
No. YD supplies powder coating powder for manufacturers that operate their own electrostatic spraying lines or purchase powder for their coating partners.
We do not manufacture the sheet metal parts described on this page.
The correct powder depends on the substrate, installation environment, required appearance, corrosion target and curing line.
Epoxy-polyester powder coating is commonly considered for indoor fabricated metal parts, while pure polyester powder coating is normally considered for outdoor exposure.
Yes. The reported laboratory testing was performed on 0.8 mm cold-rolled steel panels after oil and rust removal.
The customer’s actual pretreatment process should still be tested before bulk production.
It may be used after the galvanized surface, pretreatment and outgassing risk have been evaluated.
We recommend sample spraying on the actual galvanized parts before confirming the bulk formulation.
Powder coating can be evaluated for properly pretreated conductive aluminum substrates. The alloy, pretreatment and curing conditions should be provided before sample production.
The general recommended film thickness is 60–150 μm.
The final thickness should be determined according to the finish, part geometry and required performance.
Yes. Send a RAL number, Pantone number, physical powder sample or approved coated panel.
A physical sample panel is recommended for final color and gloss approval.
Yes. Smooth, fine-textured, matte and other decorative effects can be evaluated according to the required appearance.
The powder is designed for high-voltage electrostatic spraying. Final suitability should be confirmed through testing with the customer’s equipment, recovery system and curing oven.
Send the substrate, required color, finish, curing conditions, end-use environment and estimated consumption. YD will use this information to recommend an appropriate sample direction.
Looking for stable powder coating for sheet metal parts, machinery housings, steel panels or fabricated metal components?
Send YD your:
Substrate
Product application
Color and finish
Pretreatment process
Spraying settings
Curing schedule
Required performance
Estimated order quantity
We will recommend a suitable sheet metal powder coating, prepare a sample for production-line evaluation and provide a quotation for repeat bulk supply.
Contact YD Powder Coating to discuss your sheet metal coating requirements.
Customized
We can provide you with customized powder coating services
Develop the same or even better powder coating based on the color palette and aluminum profile surface treatment provided by our customers.
Our team works with you during every phase of the project.
Related Prodcuts
Our powder coating for curtain wall is mainly used for curtain wall with the weather-resistant will bring the weather- resistant performance to a new level and meet the requirements of AAMA2604-05.
Our special powder coatings are mainly for automobile hub (steel ring), specially designed epoxy polyester powder coating series for the characteristics and requirements of hub bottom and finish.
Imitation Anodized Powder Coating
Our imitation anodized powder coatings are suitable for anodic oxidation effect for product appearance, as well as environmental protection requirements such as Rohs and Reach.
General Industrial Powder Coating
Our general industrial powder coatings are mainly designed for decorative and outsourcing parts for industrial products, they have wide range of industrial uses.
Our antibacterial powder coatings are made of inorganic antimicrobial agents, with long-term antimicrobial performance, suitable for indoor and outdoor environments.
Standard Building Material Powder Coating
Our powder coatings for standard building material are made of polyester resin and TGIC curing agent as the main raw materials.
LET'S TAKE THIS FORWARD
Feel free to reach out for any queries. We would be happy to help!
