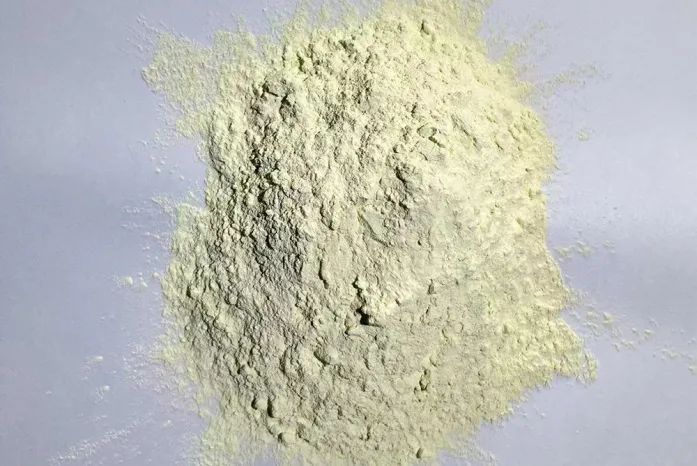

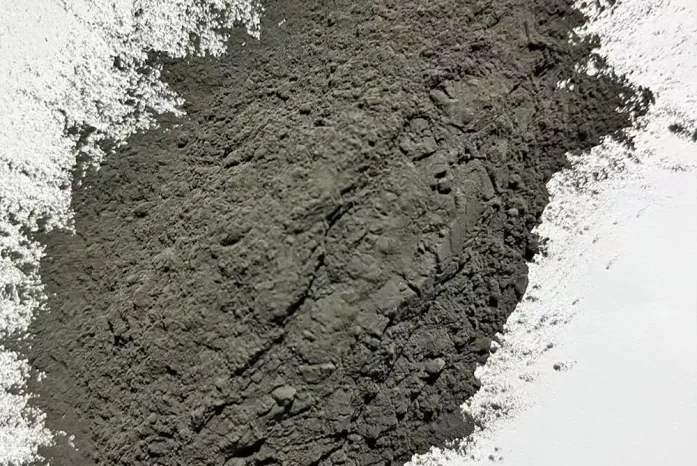

Powder Coating for Automobile Wheels
Our special powder coatings are mainly for automobile hub (steel ring), specially designed epoxy polyester powder coating series for the characteristics and requirements of hub bottom and finish.
Advantage
We always pay close attention the quality of our powder coatings, in order to protect your benefits, we will control your order strictly to ensure that the quality of each batch of your order is very stable, so that you can be 100% assured. Our powder coating testing equipment is cutting-edge in the industry, and R&D investment is increasing.
Inspection Spraying Room for Powder Coating
Laboratory for Powder Coating
Test Room for Powder Coating

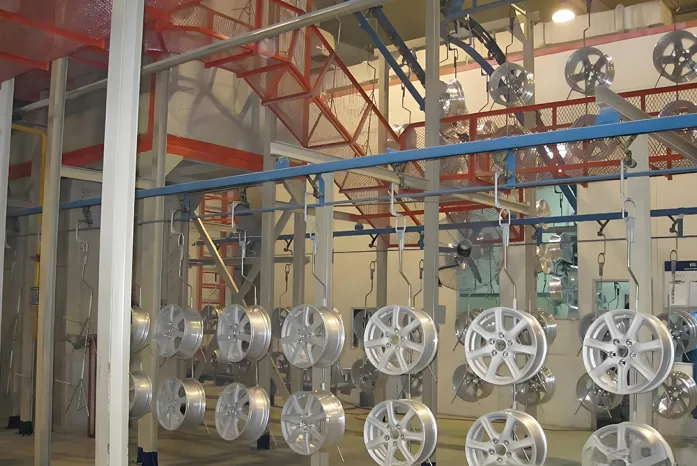

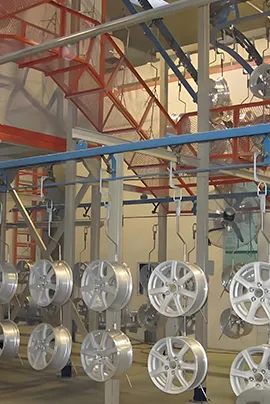

Application Scenarios
Container Stuffing
As a renowned powder coating manufacturer in China, We often ship many containers to Europe, America, the Middle East, Asia, Africa, and South America.
Product Features
YD Power Coating car rim powder coating characteristics are strong adhesion, excellent leveling, high air permeability, salt spray resistance.
Our car rim powder coatings are Suitable for automobile aluminum wheel hub, steel ring.

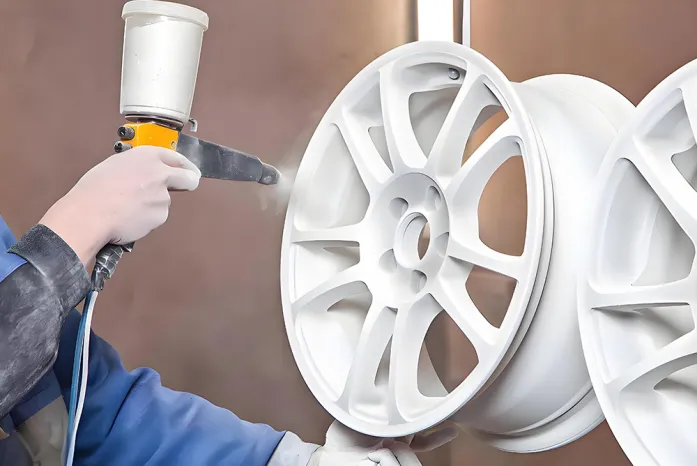

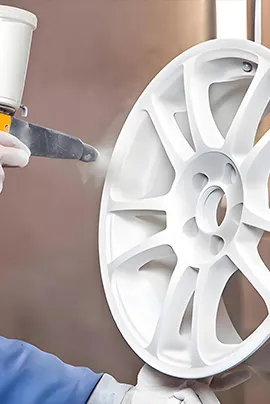

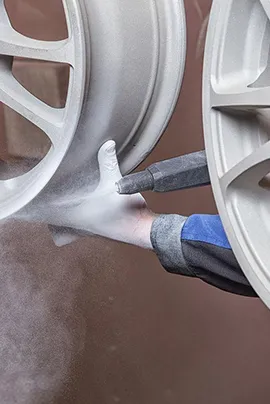

Spraying method: High voltage electrostatic spraying 60-80KV
Recommended film thickness: 60-150 um
Application parameters: the curing time is 180°C ~ 200°C x 10-15 minutes
Coating Properties
| Item | Test Equipment | Criteria | Testing Standard |
| Pencil hardness | Pencil hardness | ≥ 1H | GB/T 6739 ASTM D3363 |
| Anti impact | Anti impact tester | 50kg. Cm (dia 8mm) 2.5Nm (dia 16mm) (dia 20mm) | GB/T 1732 ASTM D2794 ISO 6272 |
| Bending resistance | Bending tester | ≤ 2mm (cylinder axis) core shaft bending | GB/T 6742 ASTM D 1737 ISO 1519 |
| Adhesive force | Gridding test | 0 grade | GB/T 9286 ISO 2409 ASTM D 3359 |
| Salt spray resistance | NSS salt spray | ≥ 1000 H, Wb ≤ 2mm | GB/T 1771 ASTM B-117 ISO 7253 |
| Cupping test | Cupping tester | ≥ 6mm | GB/T 9753 ISO 1520 |
The above tests all use 0.8mm pure aluminum plate with a fim thickness of 60 ~ 80um. The performance index of the film will change slightly with the difference of luster.
This product does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium and other heavy metals, and meets RoHS requirements.
Note: We will supply complete consultation for our clients according to their actual demand and requirement, all the test indicators mentioned in this report are the data obtained from laboratory tests for reference only and do not represent the performance commitment of the product application.
Overview
Our special powder coatings are mainly for automobile hub (steel ring), specially designed epoxy polyester powder coating series for the characteristics and requirements of hub bottom and finish. Our Automobile Wheels Powder Coating series features acrylic resin powder coating, designed specifically for enhancing the appearance and durability of alloy and steel wheels. Acrylic resin powder coatings are known for their superior adhesion, corrosion resistance, and clarity, making them ideal for automotive applications
High Gloss: This finish makes the surface appear shiny and reflective, ideal for creating a sleek and modern look. It is particularly popular for vehicles where a bold, attention-grabbing appearance is desired.
Matte: Matte finishes provide a non-reflective, textured look that offers a unique aesthetic. They are suitable for those who prefer a more subdued appearance and can help transform almost any surface or object with a distinctive look.
Metallic: Metallic finishes give an object a more reflective appearance and provide a visual texture. This type of finish is great for car parts and can make the vehicle seem newer, cleaner, and stronger.
Textured: Textured finishes transform both the feel and look of a vehicle. They provide a "rough" or different feel when touched and can make objects appear more organic and rustic, adding character. Additionally, they can provide extra grip if needed.
Two-Tone: Two-tone finishes combine two different colors or finishes on the same object. This is a popular option for car parts and high-end consumer products, allowing for unique color blends and styles that help vehicles stand out.
Why Choose Our Powder Coatings?
One good reason is not enough, we are giving you 7 to think about using our stable and reliable powder coatings.
Production Experience
We have more than 20 years of production experience to ensure the quality of your powder coating is excellent and stable.
Quality Assurance
Quality is our core, we are more than happy to send you some free samples to test our quality before any official orders.
Production Lines
With more than 28 advanced production lines, our monthly production capacity is about 1200 tons to ensure your need is met.
After Sales Guarantee
As a reliable powder coating supplier, we are willing to sign an official quality and after-sales agreement with you to ensure that your interests are protected.
FAQ
What is the minimum order quantity for your powder coatings?
Usually, the minimum order quantity for our powder coating is 1 ton. However, in special circumstances, we can accept a lower minimum order quantity as support for you.
What is the fastest lead time for your powder coatings?
Normally, the lead time for our powder coatings is 7 days after receiving your deposit. However, if your order is urgent, we will do our best to help you shorten the production cycle.
Can I get a bigger discount if I purchase in larger quantities?
That is for sure. Even though our price is reasonable enough, you can always get a bigger discount if you purchase in large quantities.
Can I get some free samples for testing before purchasing?
Quality is our culture, we are more than happy to send you some free samples for testing our quality before any official orders.
Can I get a money-back guarantee if your quality does not match the sample?
The answer is positive. You can always experience peace of mind with our 100% after-sales guarantee for any of your orders.
Where do you sell? Do you have experience in exporting to my country?
We sell our powder coatings to Europe, America, the Middle East, Asia, Africa, and South America. We have more than 10 years of experience exporting with all certificates such as Qualicoat, ISO9001 Quality Management System Certificate, ISO9001 Environmental Management System Certificate, and CPST Test Report. etc. With us, your order is safe, your business is safe.
