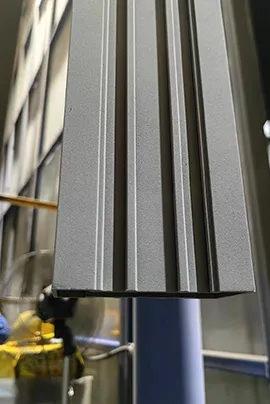

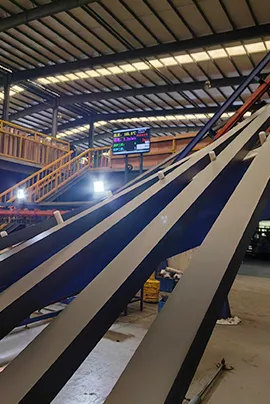

Powder Coating for Curtain Wall
Our powder coating for curtain wall is mainly used for curtain wall with the weather-resistant will bring the weather- resistant performance to a new level and meet the requirements of AAMA2604-05.
Advantage
We always pay close attention the quality of our powder coatings, in order to protect your benefits, we will control your order strictly to ensure that the quality of each batch of your order is very stable, so that you can be 100% assured. Our powder coating testing equipment is cutting-edge in the industry, and R&D investment is increasing.

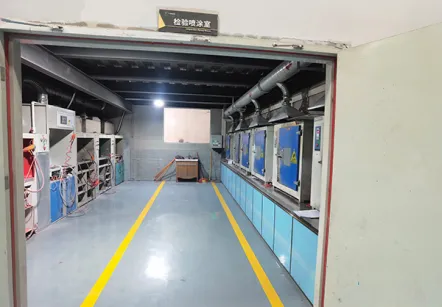

Inspection Spraying Room for Powder Coating

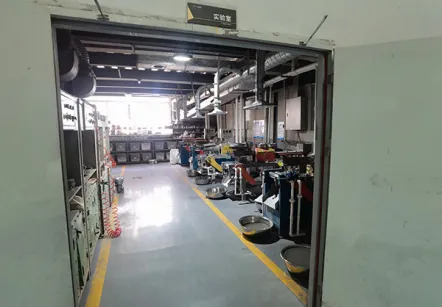

Laboratory for Powder Coating

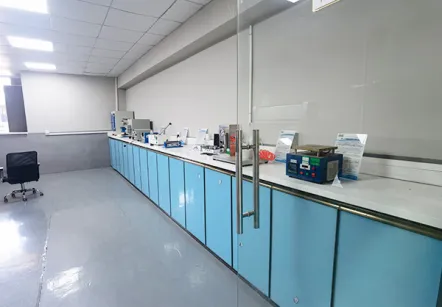

Test Room for Powder Coating
Application Scenarios

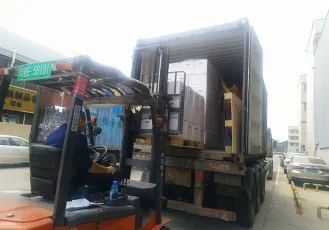

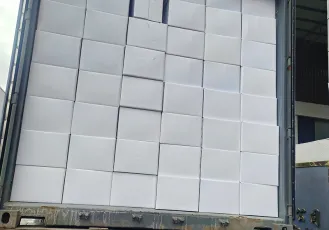

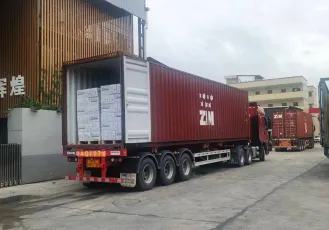

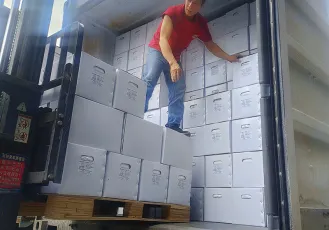

Container Stuffing
As a renowned powder coating manufacturer in China, We often ship many containers to Europe, America, the Middle East, Asia, Africa, and South America.
Product Features
Our powder coatings for curtain wall has good adhesion, flexibility and other mechanical properties, good chemical resistance , corrosion resistance
excellent weather, and heat resistance.

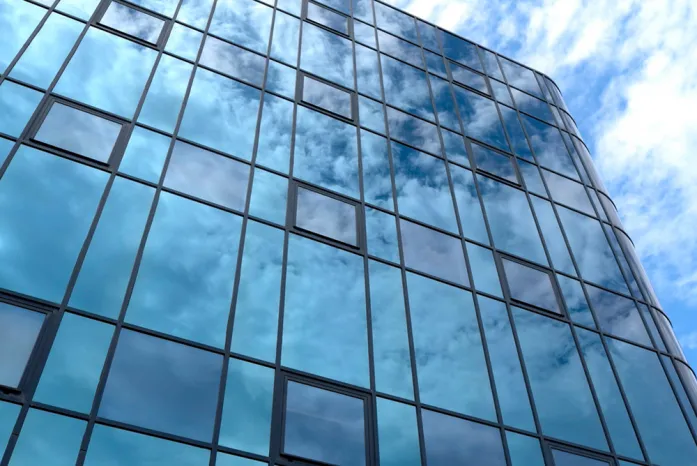

They mainly use in places with high weathering requirements (government works, commercial buildings, landmark buildings, airports, etc.).
Spraying method: high voltage electrostatic spraying 60-80KV

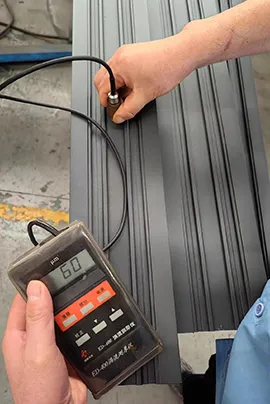

Recommended film thickness: 60-80 um
Application parameters: the curing condition is 200°C x 10~ 15 minutes/ (Actual temperature of workpiece)

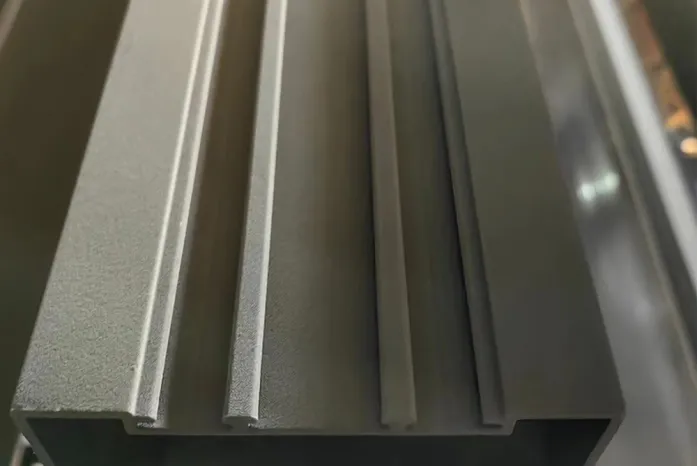

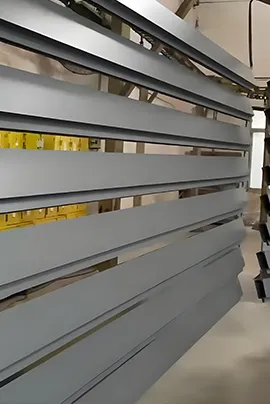

Aluminum Extrusions: Ideal for coating aluminum frames and supports, providing excellent adhesion and resistance to weathering.
Metal Panels: Perfect for metal panels used in curtain wall systems, offering superior protection and a sleek finish.
Facades: Enhances the visual appeal of building facades with a wide range of colors and finishes.
Window Frames: Provides a durable and attractive coating for window frames, improving energy efficiency and appearance.
Doors: Suitable for exterior doors, offering enhanced security and a modern look.
Balconies and Railings: Protects and beautifies balconies and railings with a long-lasting finish.
Instrument Standard Test Methods
| Physical Properties | Chemical Properties |
| Pencil hardness pencil hardness tester ≥ H GB/6739 | Salt spray: through 3000 hours-notched corrosion not exceeding 2mm according to GB/T 1771 |
| Impact resistance impact meter ≥ 50kg.cm GB/T 1732 | Moisture resistance: Through 3000 hours without bubbling GB/T 1740 |
| Bending resistance bending instrument ≤ 2mm GB/T 6742 | Artificial weathering: color difference less than 5.0, light retention rater greater than 90%, according to GB/T 1865-1997 |
| Adhesion bag test class 0 GB/T 9286 | Outdoor weather resistance: 5 years Florida exposure (facing south 45℃). AAMA2604-05 |
| Cup process cup process meter ≥ 6mm GB/T9753 | Color shade difference: E＜5, gloss retention rate > 30%, efflorescence no more than No. 8 |
The above tests all use 0.8mm pure aluminum plate with a film thickness of 60 ~ 80um. The performance index of the film will change slightly with the difference of luster.
This product does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium and other heavy metals, and meets RoHS requirements.
Storage conditions: about 35C, dry, ventilated room storage, avoid direct sunlight.
Under these conditions, the powder can be stored for 12 months, product can still be used after re -examined to be in good condition even if it is found to be expired.
Note: We will supply complete consultation for our clients according to their actual demand and requirement, all the test indicators mentioned in this report are the data obtained from laboratory tests for reference only and do not represent the performance commitment of the product application.
The results will vary once environmental factors and other conditions are changed.
Overview
YD Power Coating powder coating for curtain wall is mainly used for curtain wall with the weather-resistant will bring the weather- resistant performance to a new level and meet the requirements of AAMA2604-05.
With excellent gloss retention, color stability and excellent film integrity, with long-term decoration and protection functions. There are bright/flat/low light/metal effects available.
Glossy Finish: Creates a shiny, reflective surface that enhances the visual impact of the building's exterior. Ideal for modern and contemporary designs.
Matte Finish: Provides a non-reflective, smooth surface that offers a sophisticated and timeless look. Suitable for creating a subtle yet elegant appearance.
Textured Finish: Adds depth and character to the surface with a slight texture. This finish is excellent for hiding minor imperfections and adding visual interest.
Metallic Finish: Gives the surface a metallic sheen, creating a premium and luxurious appearance. Perfect for making architectural elements stand out.
Two-Tone Finish: Combines two different colors or finishes on the same surface, allowing for creative and unique design possibilities. Great for adding a distinctive touch to your building.
Why Choose Our Powder Coatings?
One good reason is not enough, we are giving you 7 to think about using our stable and reliable powder coatings.
Production Experience
We have more than 20 years of production experience to ensure the quality of your powder coating is excellent and stable.
Quality Assurance
Quality is our core, we are more than happy to send you some free samples to test our quality before any official orders.
Production Lines
With more than 28 advanced production lines, our monthly production capacity is about 1200 tons to ensure your need is met.
After Sales Guarantee
As a reliable powder coating supplier, we are willing to sign an official quality and after-sales agreement with you to ensure that your interests are protected.
FAQ
What is the minimum order quantity for your powder coatings?
Usually, the minimum order quantity for our powder coating is 1 ton. However, in special circumstances, we can accept a lower minimum order quantity as support for you.
What is the fastest lead time for your powder coatings?
Normally, the lead time for our powder coatings is 7 days after receiving your deposit. However, if your order is urgent, we will do our best to help you shorten the production cycle.
Can I get a bigger discount if I purchase in larger quantities?
That is for sure. Even though our price is reasonable enough, you can always get a bigger discount if you purchase in large quantities.
Can I get some free samples for testing before purchasing?
Quality is our culture, we are more than happy to send you some free samples for testing our quality before any official orders.
Can I get a money-back guarantee if your quality does not match the sample?
The answer is positive. You can always experience peace of mind with our 100% after-sales guarantee for any of your orders.
Where do you sell? Do you have experience in exporting to my country?
We sell our powder coatings to Europe, America, the Middle East, Asia, Africa, and South America. We have more than 10 years of experience exporting with all certificates such as Qualicoat, ISO9001 Quality Management System Certificate, ISO9001 Environmental Management System Certificate, and CPST Test Report. etc. With us, your order is safe, your business is safe.
